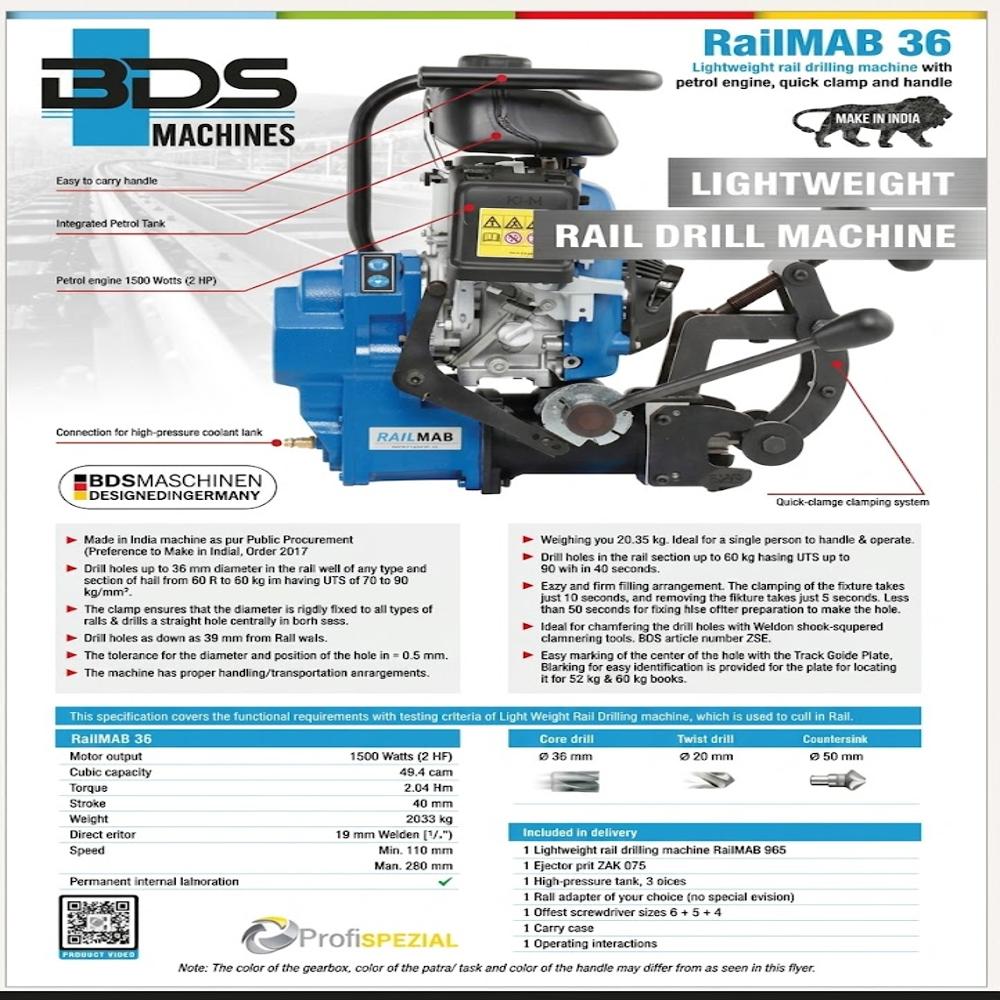

Rail Drilling Machine

Name: Rail Drilling Machine
Brand: JUSTLY DEALS
Price: 88000.0 INR
Availability: InStock

Price 88000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Rail Drilling Machine Specification

Frequency
50 Hz

Spindle Speed
450 RPM

Diameter
Drilling Range: 12 mm to 36 mm

Cutting Area
Max 36 mm

Machine Type
Portable Rail Drilling Machine

Motor Power
Approx. 1100 W

Noise Level
Low

Condition
New

Dimension (L*W*H)
Approx. 500mm x 260mm x 400mm

Features
Lightweight, quick clamping system, suitable for hard and corrected rails

Product Type
Rail Drilling Machine

Material
FIBRE

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual Control

Voltage
230 V

Power
1100 W

Power Source
Petrol Engine

Weight (kg)
17 kg

Capacity
Max. drilling 36 mm

Color
Blue & Grey

Usage & Applications
Drilling holes in railway tracks on-site

Fixture Removal Time
5 seconds

Adapter Needed
Yes, suitable adapter per track required

Countersink Option
Available for standard sizes (17.1 mm or as per requirement)

Cutting Depth
Up to 50 mm

Model
RailMAB 36

Recommended Cutter Type
BDS RST H Rail Cutters (Carbide tip)

Cutting Diameter Range
12 mm to 40 mm (with cutters)

Transport
Portable for field operations

Fixture Clamping Time
10 seconds

Accessories
Twist Drills & Countersink with Weldon Shank available

Rail Drilling Machine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2 Days

About Rail Drilling Machine

Key Specifications

Core Drilling Capacity: Up to 36 mm diameter

Cutting Depth: Up to 30 mm to 55 mm depending on the exact rail cutter and sub-model

Twist Drilling Capacity: Up to 20 mm

Efficient, Lightweight Rail Drilling Solution

Experience industry-leading portability with the RailMAB 36 rail drilling machine, weighing just 17 kg and featuring a quick clamping system for superior on-site productivity. Its compact design and manual controls make it ideal for frequent railway maintenance and repair operations, even in challenging field environments.

Versatile and Powerful Performance

Catering to a cutting diameter range of 12 mm to 36 mm with a depth of up to 50 mm, the RailMAB 36 accommodates standard rail drilling and countersinking tasks. Using BDS RST H carbide-tipped cutters, the machine efficiently drills hard and corrected rails, while essential accessories like twist drills expand its versatility.

FAQ's of Rail Drilling Machine:

Q: How does the fixture system on the RailMAB 36 improve operational efficiency?

A: The rapid clamping and removal system allows the fixture to be secured in just 10 seconds and removed in 5 seconds, significantly reducing downtime between drillings, thereby streamlining rail maintenance workflows.

Q: What cutter types and sizes are compatible with the RailMAB 36?

A: The machine is designed for BDS RST H Rail Cutters with carbide tips, supporting cutting diameters from 12 mm to 36 mm. It can also use accessories with Weldon shanks, such as twist drills and countersink tools for expanded functionality.

Q: When should I use the countersink option, and what sizes are available?

A: The countersink option is utilized when creating countersunk holes for bolts or screw heads on rails. Standard countersink sizes, like 17.1 mm or custom dimensions upon request, are supported by the RailMAB 36.

Q: Where can the RailMAB 36 be used most effectively?

A: This portable drilling machine is best suited for on-site railway track operations, especially in environments requiring rapid deployment and lightweight equipment for drilling tasks on hard or corrected rails.

Q: What is the process for adapting the RailMAB 36 to different rail tracks?

A: A suitable adapter must be selected and attached according to the specific rail type being worked on, ensuring proper alignment and drilling accuracy. Consult the machine manual or supplier for recommended adapters for your track type.

Q: How does the RailMAB 36 benefit railway maintenance teams?

A: With its lightweight build, quick setup, low noise level, and efficient drilling capabilities, the RailMAB 36 reduces operator fatigue and boosts productivity, making it an invaluable tool for maintenance professionals.
